MW Lighting
MHB24-155W-50K

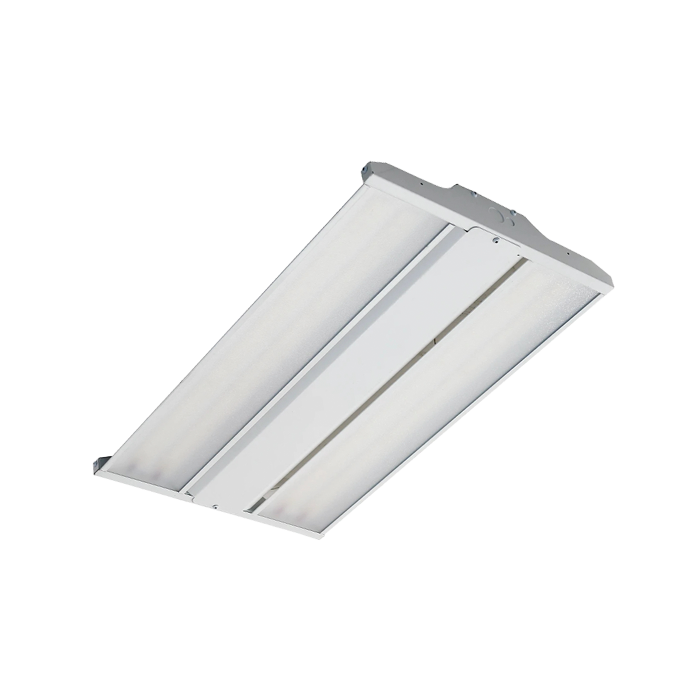

155W Twin Panel Linear LED High Bay Light Fixture – 4000K/5000K, 0-10V Dimmable, DLC & UL Certified

155W Twin Panel Linear LED High Bay Light Fixture – 4000K/5000K, 0-10V Dimmable, DLC & UL Certified

  • Available in Cool White (4000K) and Daylight (5000K)
  • High lumen output up to 23,000 lumens
  • Durable steel housing with white finish
  • Frosted polycarbonate lens for uniform light diffusion
  • 0–10V dimming for customizable brightness
  • Universal input voltage (120–277Vac)
  • Long lifespan up to 50,000 hours (L70)
  • DLC Premium and UL certified for safety and efficiency
  • Ideal for warehouses, garages, gyms, and industrial facilities
  • Fixture comes with bulb(s) integrated for your convenience.
Wattage
Light color
$135.00
$135.00
Sale Sold out
with free shipping!

Product Features

  • Available in Cool White (4000K) and Daylight (5000K)
  • High lumen output up to 23,000 lumens
  • Durable steel housing with white finish
  • Frosted polycarbonate lens for uniform light diffusion
  • 0–10V dimming for customizable brightness
  • Universal input voltage (120–277Vac)
  • Long lifespan up to 50,000 hours (L70)
  • DLC Premium and UL certified for safety and efficiency
  • Ideal for warehouses, garages, gyms, and industrial facilities
  • Fixture comes with bulb(s) integrated for your convenience.

Tech Specs

  • Model: MW-LHB-155W-2P
  • Input Voltage: 120–277V AC, 50/60Hz
  • Power Consumption: 155W
  • Lumen Output: 21,000–23,000 lumens
  • Efficacy: Up to 150 lm/W
  • CCT Options: 4000K / 5000K
  • CRI: ≥80
  • Beam Angle: 110°
  • Dimming: 0–10V
  • Power Factor: >0.9
  • Housing Material: Steel with white powder-coated finish
  • Lens Material: Frosted polycarbonate
  • Mounting: Suspension or surface mount
  • Operating Temperature: -20°C to +45°C (-4°F to +113°F)
  • IP Rating: IP40 (suitable for dry and damp locations)
  • Certifications: DLC Premium, UL Listed
  • Lifespan: 50,000 hours (L70)
  • Warranty: 5 years

  Helpful Files
View full details

Description:

The MW Lighting 155W Twin Panel Linear High Bay Fixture is engineered for maximum brightness, durability, and energy efficiency. Designed to replace outdated fluorescent and halogen high bays, it delivers superior illumination for commercial and industrial applications such as warehouses, garages, gyms, and manufacturing facilities. Featuring a robust steel housing with a high-quality frosted PC lens, this fixture ensures even light distribution and reduced glare. With 0–10V dimming, universal 120–277V input voltage, and DLC and UL certifications, it meets the highest standards for performance and reliability.

¹ based on 12 hours of daily use at average US energy rates of $0.1545/kwH

  About The Manufacturer

MW Lighting Inc., based in California, is at the forefront of developing high-quality, modern, and reliable lighting solutions. With a keen focus on adhering to industry standards, they have established themselves as a leader in the lighting sector. Their commitment to innovation drives them to deliver ultra-efficient and best-in-class lighting products.

The mission at MW Lighting has always been clear: to leverage their experience and technology to bring the latest quality products at reasonable prices to the lighting industry.
